Heavy Duty Truck Blind Spot Radar System with Adjustable Detection Range Audio-Visual Warning & Anti-Resonance Sensors

30 sets
MOQ
negotiable
Precio
Heavy Duty Truck Blind Spot Radar System with Adjustable Detection Range Audio-Visual Warning & Anti-Resonance Sensors
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Producto: Sistema de radar de punto ciego para camiones de servicio pesado con rango de detección ajustable Se
Garantía: 1 año
OEM, ODM: Apoyo
Tecnología de detección: Radar ultrasónico
Detección: Distancia
Número de sensores: 4 Sondas Radar (Ampliables por configuración)
Tipo de alarma: Zumbador + Pantalla LED de distancia
Clasificación impermeable: IP67 (Sensores y Caja de Control)
Anti-interferencia: Diseño antirresonancia de silicona de doble capa
Posición de la instalación: Punto ciego trasero/delantero/derecho
Resaltar:

truck blind spot radar system

,

adjustable detection range parking sensor

,

anti-resonance blind spot sensors
Información básica
Lugar de origen: Cantón, China
Nombre de la marca: KING CROWN
Certificación: RoHs
Pago y Envío Términos
Detalles de empaquetado: caja de cartón
Tiempo de entrega: 45 dias
Condiciones de pago: T/T, L/C
Capacidad de la fuente: 1000 sistemas por mes
Descripción de producto
Heavy Duty Truck Blind Spot Radar System with Adjustable Detection Range Audio-Visual Warning & Anti-Resonance Sensors
This heavy-duty truck radar assistance system is engineered to improve driving safety and blind-spot awareness for commercial vehicles operating in complex environments.
Key Features
  • Designed for Heavy-Duty Trucks & Commercial Vehicles - Optimized radar sensing solution for trucks, trailers, tankers, buses, and special vehicles
  • Adjustable Detection Distance up to 5 Meters - Flexible sensing range adapts to different vehicle lengths and installation positions

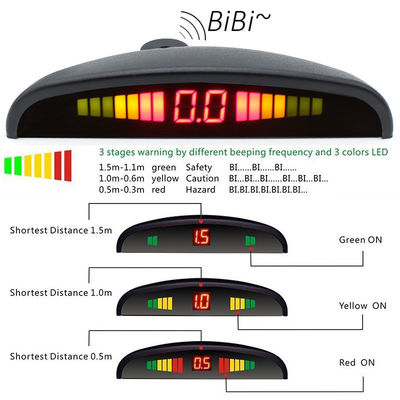

  • Audio & LED Visual Warning System - Real-time buzzer and LED display clearly indicate obstacle distance to the driver

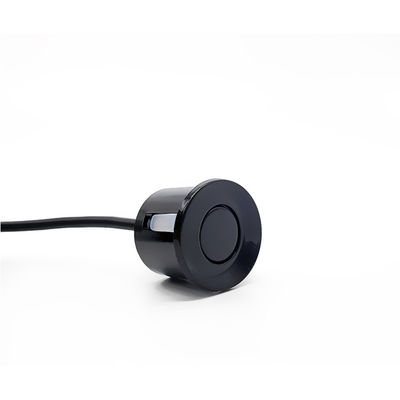

  • Anti-Resonance Radar Probes with Double Silicone Pads - Effectively reduces false alarms caused by vibration on heavy vehicles
  • IP67 Waterproof Radar Sensors & Control Box - Stable performance in rain, dust, mud, and harsh road environments
  • Modular Installation for Front, Rear or Blind Spot Coverage - Supports right-side blind spot, rear reversing, or front-rear combined layouts
Product Overview
By using high-sensitivity radar probes with adjustable detection distance up to 5 meters, the system accurately detects pedestrians, vehicles, and obstacles during reversing or low-speed maneuvers. Equipped with an audio-visual alarm module, drivers receive instant sound alerts and LED distance feedback, allowing faster reaction and safer operation. The double-layer silicone anti-resonance design minimizes vibration-induced false alarms, a common challenge for trucks and trailers.
This truck radar blind spot warning system is widely used in Europe, the Middle East, South America, and Southeast Asia for logistics fleets and heavy-duty vehicles. Designed for harsh road and climate conditions, it provides reliable reversing assistance and blind-spot protection for trucks, trailers, and buses.
Technical Specifications
Item Specification
Product Type Truck Radar Blind Spot / Reversing Assistance System
Detection Technology Ultrasonic Radar
Detection Distance Adjustable, up to 5 meters

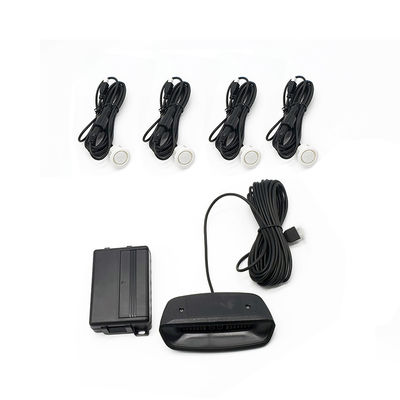

Number of Sensors 4 Radar Probes (Expandable by configuration)
Sensor Diameter Ø27 mm
Alarm Type Buzzer + LED Distance Display
Operating Voltage DC 12V / 24V
Waterproof Rating IP67 (Sensors & Control Box)
Anti-Interference Double-layer silicone anti-resonance design
Installation Position Rear / Front / Right-side Blind Spot
Operating Temperature -20°C to +70°C
Frequently Asked Questions
Q1: Can this system work on both 12V and 24V trucks?
A: Yes, it supports both 12V and 24V commercial vehicle electrical systems.
Q2: Can I install the radar only on the right-side blind spot?
A: Yes, the system supports modular installation for right-side, rear, or combined coverage.
Q3: Will vibration cause false alarms on heavy trucks?
A: No. The double-layer silicone anti-resonance design significantly reduces false alerts.
Q4: Is the system suitable for outdoor and rainy conditions?
A: Yes, all sensors and the control unit are IP67 waterproof.
VisionCarCamera Brand Advantages
  • OEM & ODM Manufacturing Support for radar systems and vehicle safety solutions
  • ISO9001, CE, RoHS Certified Production ensuring global compliance
  • 20+ Years Experience in Automotive Electronics Export
  • Stable Supply for Fleet, Distributor & Project Orders
  • Professional Technical Support, Installation Guidance & After-Sales Service
